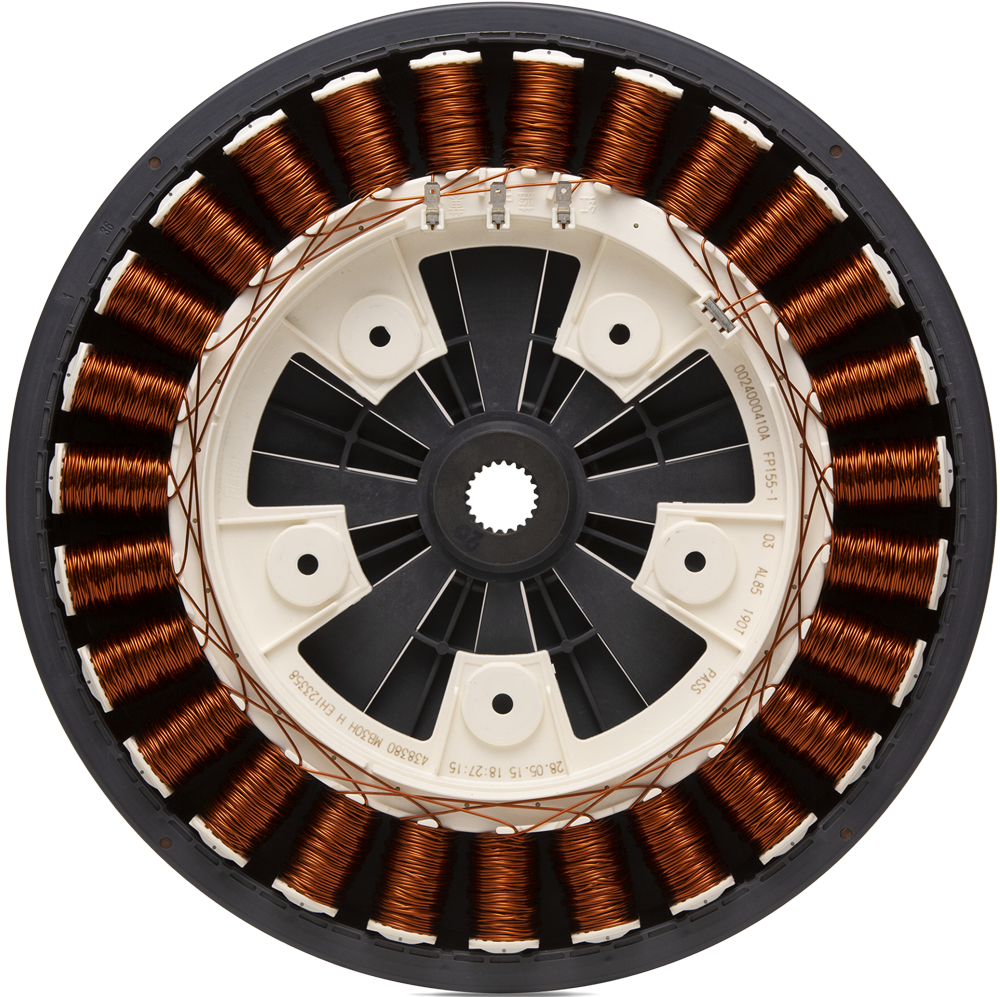

Direct Drive Motors

An efficient, customisable solution

Over the last 30 years we have improved our direct drive motor concept and this continuous improvement has led to optimal use of material – promising high efficiency, low noise and sophisticated variable speed capability.

Using our proprietary tools, we can customise our direct drive motors to fit your specifications, requirements and needs, creating an optimal drive solution for you.

Direct drive motors can be used in a wide range of products including washing machines, fans and blowers, water pumps, hydraulic pumps, ceiling fans, and industrial mixers.

Fisher & Paykel Technologies partners with businesses who need customised smart drive systems. We help you design, build & manufacture solutions which can deliver value to your customers.

Fisher & Paykel Technologies - Direct Drive

Why use a direct drive motor?

In a direct drive motor, the use of a transmission or gearbox is eliminated — meaning that the number of moving parts in the system is reduced tremendously. The result is a very efficient electric motor and a quiet, highly dynamic operation. Consequently, the direct drive mechanism gives a motor a very long lifetime.

Our Direct Drive motors provide:

A cost-optimised solution, integrated and tailored to a specific application for best product performance.
Increased efficiency: the power is not wasted in friction (from the belt, chain, or gearboxes, among other components).
Reduced noise: being simpler, a direct-drive mechanism has fewer parts which could vibrate, and the overall noise emission is generally reduced.

Longer lifetimes: fewer moving parts also means fewer parts prone to failure. Failures in other systems are usually caused by aging of the components (such as a stretched belt) or stress.
Faster and precise positioning: Field-Oriented Control (also known as Vector Control) allows feedback for precise angular position sensing.
Reduced drive stiffness: mechanical backlash, hysteresis, and elasticity are removed when gearbox or ball screw mechanisms are not present.

Fisher & Paykel Technologies partners with businesses who need customised smart drive systems. We help you design, build & manufacture solutions which delivers value to your customers.

Direct Drive Range

MAX TORQUE (NM)

OD (MM)

WEIGHT (KG)

MAX SPEED (RPM)

Fisher & Paykel Technologies - Direct Drive

MB 45T

45

1400

7.5

305

Fisher & Paykel Technologies - Direct Drive

MA 33M

31

1100

4.8

276

Fisher & Paykel Technologies - Direct Drive

MA 30W

31

1400

5.9

305

Fisher & Paykel Technologies - Direct Drive

MB 30H

26

1600

5.4

305

Fisher & Paykel Technologies - Direct Drive

MB 23G

23

1600

4.5

305

Fisher & Paykel Technologies - Direct Drive

MB-19H

23

1600

4.4

305

Fisher & Paykel Technologies - Direct Drive

MB 17G

19

1600

3.7

305

Fisher & Paykel Technologies - Direct Drive

MF 08A

8

1200

2.3

187

Fisher & Paykel Technologies - Direct Drive

MF 06A

6

1200

2.0

187

Fisher & Paykel Technologies - Direct Drive

MF 05A

5

1200

1.8

187
